三態插件DSDT08LHGET
- Contact Rating
Switching : 25 mA at 24 VDC
Non-Switching: 100 mA at 50VDC
詳細信息
三態撥碼開關--8P

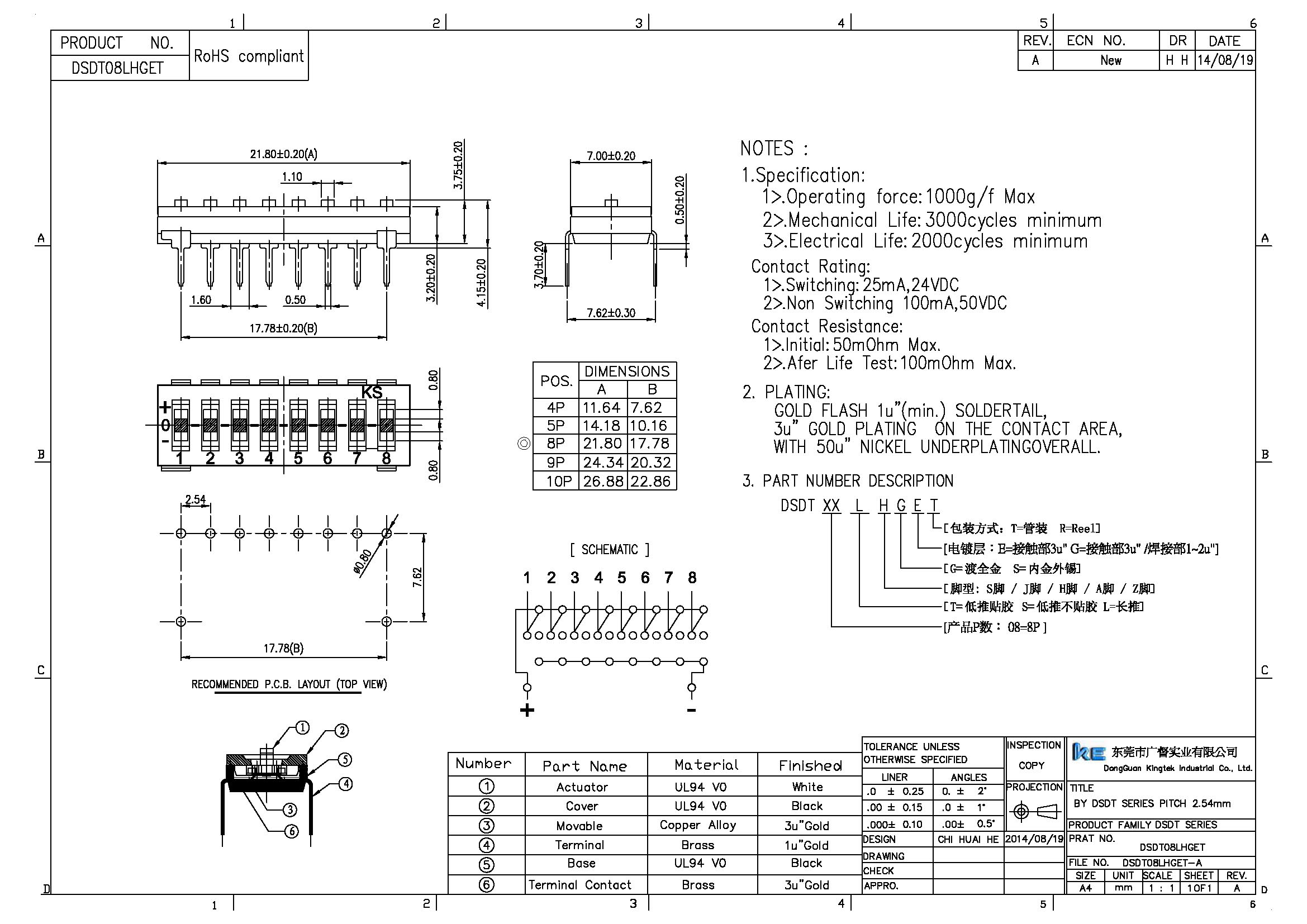

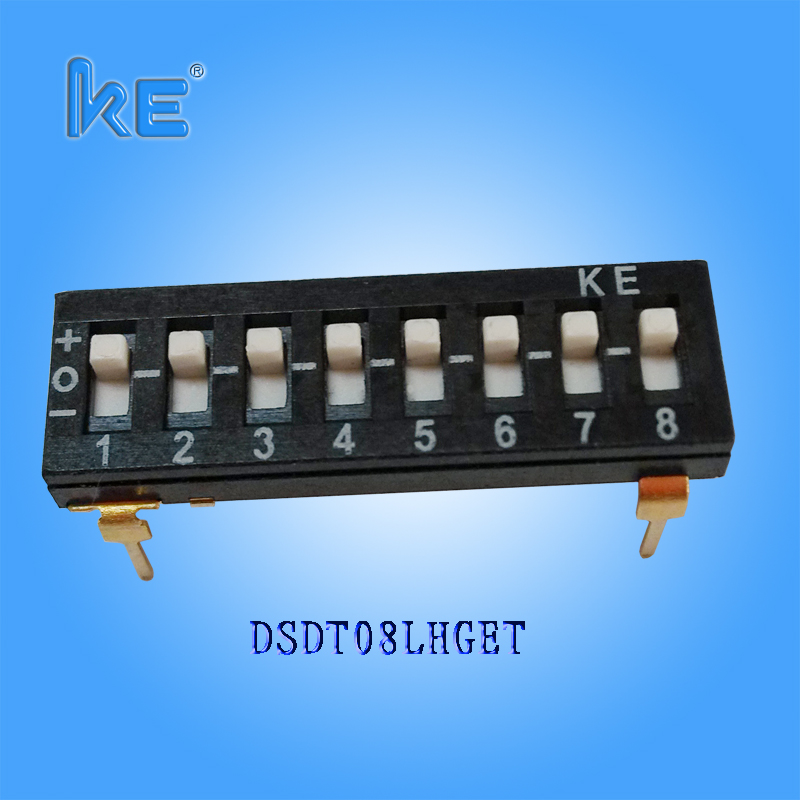

型號：DSDT08LHGET
產品參數：
Contact Rating
Switching : 25 mA at 24 VDC
Non-Switching: 100 mA at 50VDC
Contact Resistance
Initial : 50 mΩ Max
After life : 100 mΩ Max
Insulation Resistance : 100 mΩ Min,60 sec at 50VDC
Dielectric strength : 500 VDC for 60 seconds
Swith Capacitance : 5pF Max at 1MHZ
Operation Temperature : -40℃~+85℃
Storage Temperature : -40℃~+85℃
Mechanical&Processing
Operation Force :1000gf Max
Mechanical Life :3000 cycles operations
Resistance to Solderring :260±5℃ for 3-5 seconds
Electrical Life :3000 cycles 25mA 24VDC

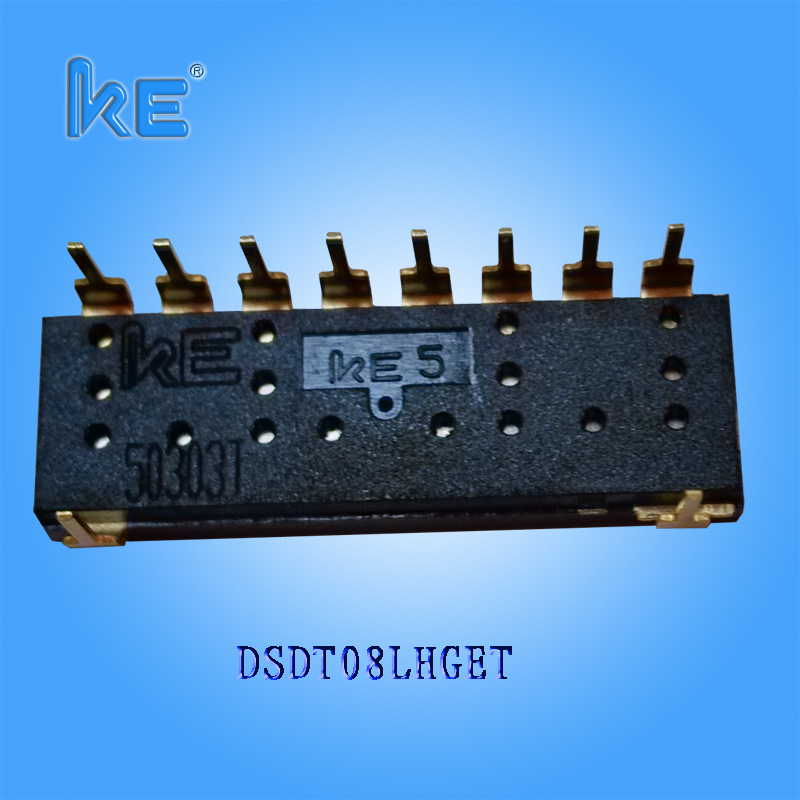

注：KE圖形為注冊商標；50303T為產品仿偽追蹤碼。
